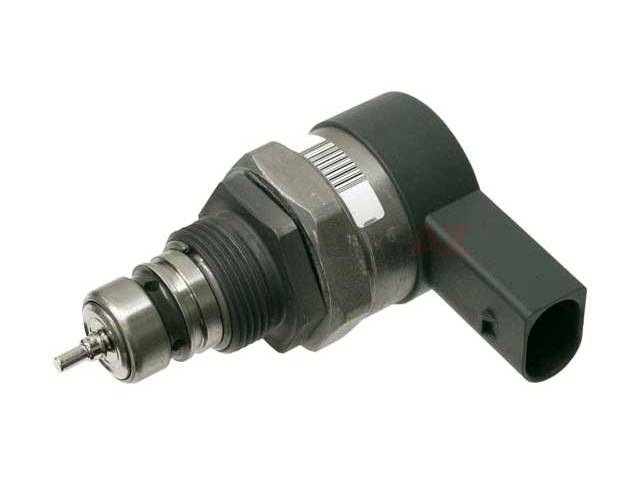

Fuel Metering Valve (CBEA) (CJAA)(CKRA)  [UW-10]

1462C00987
Pricing: $215.00

Qty:
Free Ground or Postal Service Shipping to the Continental U.S.

Description

The N290 fuel metering valve (FMV) for Bosch CP4 high pressure fuel pump (HPFP) equipped TDIs:

All '09+ North American market TDIs run the Bosch CP4 HPFP. While HPFP failure is a documented problem, sometimes these cars set fuel rail pressure faults when failed HPFP isn't to blame. If your common rail TDI has a fault stored for rail pressure yet you don't have evidence of an HPFP failure (glitter under the FMV/N290), the FMV itself is likely the culprit.

Here is the oscillation in rail pressure caused by a failed N290 valve:



Common faults are:

000136 - Fuel Rail/System Pressure - P0088 - 000 - Too High
16471/P0087/000135 == 16471/P0087/000135 - Fuel Rail/System Pressure: Too Low
The Bosch number for this part is 0928400706. Most VAG CP4s have this engraved on top of the valve, but not all.
Installation is a simple 2 bolt affair. The N290 is not available from Volkswagen/Audi. Save nearly $1000 by replacing the N290 yourself instead of paying the dealer to replace the pump.

Details

  • 1462C00987
  • 1462C00987
  • Bosch
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 0.7 lbs.
  • W4.0000” x H2.0000” x L2.0000”
  • Free Ground or Postal Service Shipping to the Continental U.S.
